Silverlight Data Templates

For this blog post I’m going to show an example of using data templates to swap in xaml depending on data.


This list displays 4 “Messages” each of a different “MessageType” value.  A data template is displayed depending on the MessageType.

<UserControl x:Class="UIMessage.MainPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:UIMessage="clr-namespace:UIMessage"
mc:Ignorable="d">
<UserControl.Resources>

</UserControl.Resources>
<Grid x:Name="LayoutRoot" Background="White">
<ItemsControl x:Name="MessageList">
<ItemsControl.ItemTemplate>
<DataTemplate>
<UIMessage:MessageDataTemplateSelector Content="{Binding}" Margin="10"/>
</DataTemplate>
</ItemsControl.ItemTemplate>
</ItemsControl>
</Grid>
</UserControl>


using System.Collections.Generic;

namespace UIMessage
{
public partial class MainPage
{
public MainPage()
{
InitializeComponent();

this.MessageList.ItemsSource = new List<Message>(4)
{
new Message() {MessageType = MessageType.Info, Text = "For your info, this is a message", Title = "INFORMATION"},
new Message() {MessageType = MessageType.Success, Text = "Well done, you're a winner!", Title = "SUCCESS!"},
new Message() {MessageType = MessageType.Error, Text = "Output your error message here", Title = "ERROR"},
new Message() {MessageType = MessageType.Question, Text = "Why?", Title = "QUESTION"}
};
}
}
}



using System;
using System.Windows;
using System.Windows.Controls;


namespace UIMessage
{
public class MessageDataTemplateSelector : ContentControl
{
protected override void OnContentChanged(object oldContent, object newContent)
{
base.OnContentChanged(oldContent, newContent);

var item = newContent as Message;
if (item==null) throw new Exception("Expected datatype is Message");

// you could load dynamically from a DLL or loose xaml file, here we use an application resource
var key = string.Format("{0}DataTemplate", item.MessageType);
var dataTemplate = Application.Current.Resources[key] as DataTemplate;

ContentTemplate = dataTemplate;
}
}
}
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">

<Style x:Key="TextBlockStyle" TargetType="TextBlock">
<Setter Property="Foreground" Value="White" />
<Setter Property="FontFamily" Value="Segoe UI" />
<Setter Property="FontSize" Value="16" />
<Setter Property="HorizontalAlignment" Value="Center" />
<Setter Property="VerticalAlignment" Value="Center" />
</Style>

<Style x:Key="PathStyle" TargetType="Path">
<Setter Property="Stroke" Value="White" />
<Setter Property="Fill" Value="White" />
<Setter Property="StrokeLineJoin" Value="Round" />
<Setter Property="Stretch" Value="Fill" />
<Setter Property="HorizontalAlignment" Value="Center" />
<Setter Property="VerticalAlignment" Value="Center" />
<Setter Property="Height" Value="25" />
<Setter Property="Width" Value="25" />
</Style>

<DataTemplate x:Key="InfoDataTemplate">
<Grid Background="#D759ABC3" Height="50" Width="400">
<TextBlock Text="{Binding Text}" Style="{StaticResource TextBlockStyle}" FontSize="20" />
</Grid>
</DataTemplate>

<DataTemplate x:Key="QuestionDataTemplate">
<Grid Background="#DCF9A938" Height="150" Width="150">
<Grid.RowDefinitions>
<RowDefinition />
<RowDefinition />
<RowDefinition />
</Grid.RowDefinitions>

<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
</Grid.ColumnDefinitions>

<Path Style="{StaticResource PathStyle}" Data="M 22.1958,1.33777C 39.3958,-4.26224 59.2625,8.27112 61.7958,26.0044C 65.2625,42.9378 52.0625,60.5378 34.9958,62.2711C 18.8625,64.8044 2.4625,52.6711 0.0625,36.5378C -2.87083,21.4711 7.39583,5.4711 22.1958,1.33777 Z M 22.3292,5.4711C 11.5292,9.07111 3.2625,19.8711 3.6625,31.3378C 3.12917,46.4044 17.3958,59.8711 32.3292,58.5378C 47.3958,58.2711 60.1958,43.6044 58.1958,28.6711C 57.1292,11.7378 38.0625,-0.395569 22.3292,5.4711 Z M 24.7292,15.7378C 30.9958,11.8711 42.5958,14.6711 42.3292,23.3378C 43.1292,30.2711 34.0625,31.6044 33.3958,38.0044C 31.3958,38.0044 29.3958,38.0044 27.3958,37.8711C 27.6625,35.8711 27.7958,33.7378 28.5958,31.8711C 30.3292,29.0711 33.3958,27.3378 35.1292,24.5378C 35.3958,21.8711 33.1292,18.8044 30.1958,19.8711C 27.3958,20.2711 27.2625,23.7378 26.1958,25.7378C 23.9292,25.7378 21.6625,25.6044 19.3958,25.4711C 20.1958,21.8711 21.1292,17.7378 24.7292,15.7378 Z M 27.9292,41.6044C 29.5292,39.2044 32.5958,40.8044 34.4625,41.7378C 34.1958,43.7378 34.8625,46.8044 32.1958,47.6044C 28.7292,49.2044 25.1292,44.2711 27.9292,41.6044 Z "/>
<Path Grid.Column="1" Style="{StaticResource PathStyle}" Data="M 22.1958,1.33777C 39.3958,-4.26224 59.2625,8.27112 61.7958,26.0044C 65.2625,42.9378 52.0625,60.5378 34.9958,62.2711C 18.8625,64.8044 2.4625,52.6711 0.0625,36.5378C -2.87083,21.4711 7.39583,5.4711 22.1958,1.33777 Z M 22.3292,5.4711C 11.5292,9.07111 3.2625,19.8711 3.6625,31.3378C 3.12917,46.4044 17.3958,59.8711 32.3292,58.5378C 47.3958,58.2711 60.1958,43.6044 58.1958,28.6711C 57.1292,11.7378 38.0625,-0.395569 22.3292,5.4711 Z M 24.7292,15.7378C 30.9958,11.8711 42.5958,14.6711 42.3292,23.3378C 43.1292,30.2711 34.0625,31.6044 33.3958,38.0044C 31.3958,38.0044 29.3958,38.0044 27.3958,37.8711C 27.6625,35.8711 27.7958,33.7378 28.5958,31.8711C 30.3292,29.0711 33.3958,27.3378 35.1292,24.5378C 35.3958,21.8711 33.1292,18.8044 30.1958,19.8711C 27.3958,20.2711 27.2625,23.7378 26.1958,25.7378C 23.9292,25.7378 21.6625,25.6044 19.3958,25.4711C 20.1958,21.8711 21.1292,17.7378 24.7292,15.7378 Z M 27.9292,41.6044C 29.5292,39.2044 32.5958,40.8044 34.4625,41.7378C 34.1958,43.7378 34.8625,46.8044 32.1958,47.6044C 28.7292,49.2044 25.1292,44.2711 27.9292,41.6044 Z "/>
<Path Grid.Column="2" Style="{StaticResource PathStyle}" Data="M 22.1958,1.33777C 39.3958,-4.26224 59.2625,8.27112 61.7958,26.0044C 65.2625,42.9378 52.0625,60.5378 34.9958,62.2711C 18.8625,64.8044 2.4625,52.6711 0.0625,36.5378C -2.87083,21.4711 7.39583,5.4711 22.1958,1.33777 Z M 22.3292,5.4711C 11.5292,9.07111 3.2625,19.8711 3.6625,31.3378C 3.12917,46.4044 17.3958,59.8711 32.3292,58.5378C 47.3958,58.2711 60.1958,43.6044 58.1958,28.6711C 57.1292,11.7378 38.0625,-0.395569 22.3292,5.4711 Z M 24.7292,15.7378C 30.9958,11.8711 42.5958,14.6711 42.3292,23.3378C 43.1292,30.2711 34.0625,31.6044 33.3958,38.0044C 31.3958,38.0044 29.3958,38.0044 27.3958,37.8711C 27.6625,35.8711 27.7958,33.7378 28.5958,31.8711C 30.3292,29.0711 33.3958,27.3378 35.1292,24.5378C 35.3958,21.8711 33.1292,18.8044 30.1958,19.8711C 27.3958,20.2711 27.2625,23.7378 26.1958,25.7378C 23.9292,25.7378 21.6625,25.6044 19.3958,25.4711C 20.1958,21.8711 21.1292,17.7378 24.7292,15.7378 Z M 27.9292,41.6044C 29.5292,39.2044 32.5958,40.8044 34.4625,41.7378C 34.1958,43.7378 34.8625,46.8044 32.1958,47.6044C 28.7292,49.2044 25.1292,44.2711 27.9292,41.6044 Z "/>

<TextBlock Grid.Row="1" Text="{Binding Text}" Grid.ColumnSpan="3" Style="{StaticResource TextBlockStyle}" FontSize="20" />

<Path Grid.Row="2" Grid.Column="1" Style="{StaticResource PathStyle}" Data="M 22.1958,1.33777C 39.3958,-4.26224 59.2625,8.27112 61.7958,26.0044C 65.2625,42.9378 52.0625,60.5378 34.9958,62.2711C 18.8625,64.8044 2.4625,52.6711 0.0625,36.5378C -2.87083,21.4711 7.39583,5.4711 22.1958,1.33777 Z M 22.3292,5.4711C 11.5292,9.07111 3.2625,19.8711 3.6625,31.3378C 3.12917,46.4044 17.3958,59.8711 32.3292,58.5378C 47.3958,58.2711 60.1958,43.6044 58.1958,28.6711C 57.1292,11.7378 38.0625,-0.395569 22.3292,5.4711 Z M 24.7292,15.7378C 30.9958,11.8711 42.5958,14.6711 42.3292,23.3378C 43.1292,30.2711 34.0625,31.6044 33.3958,38.0044C 31.3958,38.0044 29.3958,38.0044 27.3958,37.8711C 27.6625,35.8711 27.7958,33.7378 28.5958,31.8711C 30.3292,29.0711 33.3958,27.3378 35.1292,24.5378C 35.3958,21.8711 33.1292,18.8044 30.1958,19.8711C 27.3958,20.2711 27.2625,23.7378 26.1958,25.7378C 23.9292,25.7378 21.6625,25.6044 19.3958,25.4711C 20.1958,21.8711 21.1292,17.7378 24.7292,15.7378 Z M 27.9292,41.6044C 29.5292,39.2044 32.5958,40.8044 34.4625,41.7378C 34.1958,43.7378 34.8625,46.8044 32.1958,47.6044C 28.7292,49.2044 25.1292,44.2711 27.9292,41.6044 Z "/>
<Path Grid.Row="2" Style="{StaticResource PathStyle}" Data="M 22.1958,1.33777C 39.3958,-4.26224 59.2625,8.27112 61.7958,26.0044C 65.2625,42.9378 52.0625,60.5378 34.9958,62.2711C 18.8625,64.8044 2.4625,52.6711 0.0625,36.5378C -2.87083,21.4711 7.39583,5.4711 22.1958,1.33777 Z M 22.3292,5.4711C 11.5292,9.07111 3.2625,19.8711 3.6625,31.3378C 3.12917,46.4044 17.3958,59.8711 32.3292,58.5378C 47.3958,58.2711 60.1958,43.6044 58.1958,28.6711C 57.1292,11.7378 38.0625,-0.395569 22.3292,5.4711 Z M 24.7292,15.7378C 30.9958,11.8711 42.5958,14.6711 42.3292,23.3378C 43.1292,30.2711 34.0625,31.6044 33.3958,38.0044C 31.3958,38.0044 29.3958,38.0044 27.3958,37.8711C 27.6625,35.8711 27.7958,33.7378 28.5958,31.8711C 30.3292,29.0711 33.3958,27.3378 35.1292,24.5378C 35.3958,21.8711 33.1292,18.8044 30.1958,19.8711C 27.3958,20.2711 27.2625,23.7378 26.1958,25.7378C 23.9292,25.7378 21.6625,25.6044 19.3958,25.4711C 20.1958,21.8711 21.1292,17.7378 24.7292,15.7378 Z M 27.9292,41.6044C 29.5292,39.2044 32.5958,40.8044 34.4625,41.7378C 34.1958,43.7378 34.8625,46.8044 32.1958,47.6044C 28.7292,49.2044 25.1292,44.2711 27.9292,41.6044 Z "/>
<Path Grid.Row="2" Grid.Column="2" Style="{StaticResource PathStyle}" Data="M 22.1958,1.33777C 39.3958,-4.26224 59.2625,8.27112 61.7958,26.0044C 65.2625,42.9378 52.0625,60.5378 34.9958,62.2711C 18.8625,64.8044 2.4625,52.6711 0.0625,36.5378C -2.87083,21.4711 7.39583,5.4711 22.1958,1.33777 Z M 22.3292,5.4711C 11.5292,9.07111 3.2625,19.8711 3.6625,31.3378C 3.12917,46.4044 17.3958,59.8711 32.3292,58.5378C 47.3958,58.2711 60.1958,43.6044 58.1958,28.6711C 57.1292,11.7378 38.0625,-0.395569 22.3292,5.4711 Z M 24.7292,15.7378C 30.9958,11.8711 42.5958,14.6711 42.3292,23.3378C 43.1292,30.2711 34.0625,31.6044 33.3958,38.0044C 31.3958,38.0044 29.3958,38.0044 27.3958,37.8711C 27.6625,35.8711 27.7958,33.7378 28.5958,31.8711C 30.3292,29.0711 33.3958,27.3378 35.1292,24.5378C 35.3958,21.8711 33.1292,18.8044 30.1958,19.8711C 27.3958,20.2711 27.2625,23.7378 26.1958,25.7378C 23.9292,25.7378 21.6625,25.6044 19.3958,25.4711C 20.1958,21.8711 21.1292,17.7378 24.7292,15.7378 Z M 27.9292,41.6044C 29.5292,39.2044 32.5958,40.8044 34.4625,41.7378C 34.1958,43.7378 34.8625,46.8044 32.1958,47.6044C 28.7292,49.2044 25.1292,44.2711 27.9292,41.6044 Z "/>
</Grid>
</DataTemplate>

<DataTemplate x:Key="SuccessDataTemplate">
<Grid Background="#E151A351" Height="100" Width="300">

<Grid.RowDefinitions>
<RowDefinition />
<RowDefinition />
</Grid.RowDefinitions>

<Grid.ColumnDefinitions>
<ColumnDefinition />
<ColumnDefinition />
<ColumnDefinition />
</Grid.ColumnDefinitions>

<TextBlock Text="{Binding Text}" Grid.ColumnSpan="3" Style="{StaticResource TextBlockStyle}" FontSize="20" />

<TextBlock Text="{Binding Title}" Grid.Row="1" Grid.Column="1" Style="{StaticResource TextBlockStyle}" />

<Path Grid.Row="1" Style="{StaticResource PathStyle}" Data="M 22.0625,1.33466C 38.7292,-4.13202 58.1958,7.46799 61.5292,24.8013C 65.7958,42.0013 52.4625,60.5347 34.8625,62.268C 18.8625,64.8013 2.32917,52.668 0.0625,36.668C -3.00417,21.468 7.2625,5.46799 22.0625,1.33466 Z M 22.0625,5.46799C 10.8625,9.20132 2.59583,20.8013 3.52917,32.668C 3.79583,47.2013 17.6625,59.7346 32.1958,58.5347C 47.2625,58.268 60.0625,43.6013 58.0625,28.668C 56.9958,11.7346 37.9292,-0.398682 22.0625,5.46799 Z M 41.7958,17.6013C 43.3958,18.668 47.7958,19.868 45.7958,22.4013C 39.9292,29.7346 34.4625,37.6013 28.1958,44.5347C 23.7958,40.8013 20.3292,36.268 16.3292,32.1347C 13.9292,30.1347 17.6625,28.268 18.9958,26.9347C 22.4625,29.2013 24.7292,33.068 28.0625,35.7346C 32.4625,29.468 37.3958,23.7346 41.7958,17.6013 Z "/>

<Path Grid.Row="1" Grid.Column="3" Style="{StaticResource PathStyle}" Data="M 22.0625,1.33466C 38.7292,-4.13202 58.1958,7.46799 61.5292,24.8013C 65.7958,42.0013 52.4625,60.5347 34.8625,62.268C 18.8625,64.8013 2.32917,52.668 0.0625,36.668C -3.00417,21.468 7.2625,5.46799 22.0625,1.33466 Z M 22.0625,5.46799C 10.8625,9.20132 2.59583,20.8013 3.52917,32.668C 3.79583,47.2013 17.6625,59.7346 32.1958,58.5347C 47.2625,58.268 60.0625,43.6013 58.0625,28.668C 56.9958,11.7346 37.9292,-0.398682 22.0625,5.46799 Z M 41.7958,17.6013C 43.3958,18.668 47.7958,19.868 45.7958,22.4013C 39.9292,29.7346 34.4625,37.6013 28.1958,44.5347C 23.7958,40.8013 20.3292,36.268 16.3292,32.1347C 13.9292,30.1347 17.6625,28.268 18.9958,26.9347C 22.4625,29.2013 24.7292,33.068 28.0625,35.7346C 32.4625,29.468 37.3958,23.7346 41.7958,17.6013 Z "/>

</Grid>
</DataTemplate>

<DataTemplate x:Key="ErrorDataTemplate">
<Grid Background="#D5BD3630" Height="110" Width="350">

<Grid.ColumnDefinitions>
<ColumnDefinition Width="130" />
<ColumnDefinition />
</Grid.ColumnDefinitions>

<Path Width="100" Height="100" Style="{StaticResource PathStyle}" Data="M 22.0625,1.3432C 39.2625,-4.25677 59.1292,8.14319 61.6625,26.0099C 65.1292,42.9432 51.9292,60.5432 34.8625,62.2766C 18.8625,64.8099 2.32917,52.6765 0.0625,36.5432C -3.00417,21.4766 7.2625,5.47656 22.0625,1.3432 Z M 22.0625,5.47656C 11.3958,9.07654 3.12917,19.8765 3.52917,31.3432C 2.99583,46.4099 17.2625,59.8765 32.1958,58.5432C 47.2625,58.2766 60.0625,43.6099 58.0625,28.6765C 56.9958,11.7432 37.9292,-0.390137 22.0625,5.47656 Z M 18.4625,23.3432C 19.7958,21.8765 20.9958,20.5432 22.4625,19.4766C 25.2625,22.2766 28.0625,25.0765 30.9958,27.8765C 34.0625,25.2099 36.7292,22.0099 39.9292,19.4766C 41.1292,20.8099 42.3292,22.0099 43.5292,23.3432C 40.8625,26.4099 37.6625,29.0765 35.1292,32.2766C 38.0625,34.9432 40.8625,37.8765 43.5292,40.6765C 42.3292,42.0099 41.1292,43.3432 39.9292,44.6765C 36.7292,42.0099 34.0625,38.8099 30.9958,36.1432C 27.9292,38.9432 25.2625,42.1432 21.9292,44.6765C 20.8625,43.2099 19.6625,42.0099 18.5958,40.6765C 20.9958,37.7432 23.9292,35.2099 26.5958,32.4099C 25.1292,28.8099 20.8625,26.5432 18.4625,23.3432 Z "/>

<TextBlock Grid.Column="1" Text="{Binding Title}" Style="{StaticResource TextBlockStyle}" FontSize="50" />
</Grid>
</DataTemplate>
</ResourceDictionary>

In our project we have:


imageApp.xaml Contains a reference to our DataTemplates.xaml, this makes them globally accessible to our application.


DataTemplates.xaml Contains our 4 different data templates.


MainPage.xaml Our only view.


Message.cs Class definition also contains the MessageType enum


MessageDataTemplateSelector.cs The logic to work out which data template to display.


Click on the files above to view the source or download the entire project from github.


Source code:  https://github.com/stevenh77/UIMessage

Saturday 27 October 2012

Some icons and paths

error       info       question       success

Cross


<?xml version="1.0" encoding="utf-8"?>
<Grid xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Background="black">
<Path Stretch="Fill" StrokeLineJoin="Round" Stroke="#FFFFFFFF" Fill="#FFFFFFFF" Data="M 22.0625,1.3432C 39.2625,-4.25677 59.1292,8.14319 61.6625,26.0099C 65.1292,42.9432 51.9292,60.5432 34.8625,62.2766C 18.8625,64.8099 2.32917,52.6765 0.0625,36.5432C -3.00417,21.4766 7.2625,5.47656 22.0625,1.3432 Z M 22.0625,5.47656C 11.3958,9.07654 3.12917,19.8765 3.52917,31.3432C 2.99583,46.4099 17.2625,59.8765 32.1958,58.5432C 47.2625,58.2766 60.0625,43.6099 58.0625,28.6765C 56.9958,11.7432 37.9292,-0.390137 22.0625,5.47656 Z M 18.4625,23.3432C 19.7958,21.8765 20.9958,20.5432 22.4625,19.4766C 25.2625,22.2766 28.0625,25.0765 30.9958,27.8765C 34.0625,25.2099 36.7292,22.0099 39.9292,19.4766C 41.1292,20.8099 42.3292,22.0099 43.5292,23.3432C 40.8625,26.4099 37.6625,29.0765 35.1292,32.2766C 38.0625,34.9432 40.8625,37.8765 43.5292,40.6765C 42.3292,42.0099 41.1292,43.3432 39.9292,44.6765C 36.7292,42.0099 34.0625,38.8099 30.9958,36.1432C 27.9292,38.9432 25.2625,42.1432 21.9292,44.6765C 20.8625,43.2099 19.6625,42.0099 18.5958,40.6765C 20.9958,37.7432 23.9292,35.2099 26.5958,32.4099C 25.1292,28.8099 20.8625,26.5432 18.4625,23.3432 Z "/>
</Grid>

Info



<?xml version="1.0" encoding="utf-8"?>
<Grid xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Background="black">
<Path Stretch="Fill" StrokeLineJoin="Round" Stroke="#FFFFFFFF" Fill="#FFFFFFFF" Data="M 22.0625,1.33777C 39.2625,-4.26221 59.1292,8.27112 61.6625,26.0045C 65.1292,42.9377 51.9292,60.5378 34.8625,62.2711C 18.8625,64.8044 2.32917,52.6711 0.0625,36.5378C -3.00417,21.4711 7.2625,5.47113 22.0625,1.33777 Z M 22.0625,5.47113C 11.3958,9.07111 3.12917,19.8711 3.52917,31.3378C 2.99583,46.4044 17.2625,59.8711 32.1958,58.5378C 47.2625,58.2711 60.0625,43.6044 58.0625,28.6711C 56.9958,11.7378 37.9292,-0.395569 22.0625,5.47113 Z M 28.3292,16.1378C 31.2625,14.9378 36.0625,15.3378 35.9292,19.3378C 35.9292,23.3378 31.2625,23.3378 28.4625,22.5378L 28.5958,21.3378C 28.5958,20.0045 28.5958,18.6711 28.4625,17.3378L 28.3292,16.1378 Z M 28.5958,21.3378C 25.7958,22.1378 25.7958,16.5378 28.4625,17.3378C 28.5958,18.6711 28.5958,20.0045 28.5958,21.3378 Z M 28.8625,26.2711C 30.9958,26.1378 32.9958,26.0045 35.1292,26.0045C 35.2625,33.6044 35.2625,41.0711 35.1292,48.6711C 32.9958,48.5378 30.9958,48.5378 28.8625,48.4044C 30.0625,48.0045 32.3292,47.3378 33.5292,47.0711C 34.3292,40.5378 34.1958,34.1378 33.5292,27.6044C 32.3292,27.3378 30.0625,26.6711 28.8625,26.2711 Z M 28.8625,26.2711C 30.0625,26.6711 32.3292,27.3378 33.5292,27.6044C 34.1958,34.1378 34.3292,40.5378 33.5292,47.0711C 32.3292,47.3378 30.0625,48.0045 28.8625,48.4044C 28.9958,41.0711 28.9958,33.6044 28.8625,26.2711 Z "/>
</Grid>


Question Mark



<?xml version="1.0" encoding="utf-8"?>
<Grid xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Background="black">
<Path Stretch="Fill" StrokeLineJoin="Round" Stroke="#FFFFFFFF" Fill="#FFFFFFFF" Data="M 22.1958,1.33777C 39.3958,-4.26224 59.2625,8.27112 61.7958,26.0044C 65.2625,42.9378 52.0625,60.5378 34.9958,62.2711C 18.8625,64.8044 2.4625,52.6711 0.0625,36.5378C -2.87083,21.4711 7.39583,5.4711 22.1958,1.33777 Z M 22.3292,5.4711C 11.5292,9.07111 3.2625,19.8711 3.6625,31.3378C 3.12917,46.4044 17.3958,59.8711 32.3292,58.5378C 47.3958,58.2711 60.1958,43.6044 58.1958,28.6711C 57.1292,11.7378 38.0625,-0.395569 22.3292,5.4711 Z M 24.7292,15.7378C 30.9958,11.8711 42.5958,14.6711 42.3292,23.3378C 43.1292,30.2711 34.0625,31.6044 33.3958,38.0044C 31.3958,38.0044 29.3958,38.0044 27.3958,37.8711C 27.6625,35.8711 27.7958,33.7378 28.5958,31.8711C 30.3292,29.0711 33.3958,27.3378 35.1292,24.5378C 35.3958,21.8711 33.1292,18.8044 30.1958,19.8711C 27.3958,20.2711 27.2625,23.7378 26.1958,25.7378C 23.9292,25.7378 21.6625,25.6044 19.3958,25.4711C 20.1958,21.8711 21.1292,17.7378 24.7292,15.7378 Z M 27.9292,41.6044C 29.5292,39.2044 32.5958,40.8044 34.4625,41.7378C 34.1958,43.7378 34.8625,46.8044 32.1958,47.6044C 28.7292,49.2044 25.1292,44.2711 27.9292,41.6044 Z "/>
</Grid>


Tick





<?xml version="1.0" encoding="utf-8"?>
<Grid xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" Background="black">
<Path Stretch="Fill" StrokeLineJoin="Round" Stroke="#FFFFFFFF" Fill="#FFFFFFFF" Data="M 22.0625,1.33466C 38.7292,-4.13202 58.1958,7.46799 61.5292,24.8013C 65.7958,42.0013 52.4625,60.5347 34.8625,62.268C 18.8625,64.8013 2.32917,52.668 0.0625,36.668C -3.00417,21.468 7.2625,5.46799 22.0625,1.33466 Z M 22.0625,5.46799C 10.8625,9.20132 2.59583,20.8013 3.52917,32.668C 3.79583,47.2013 17.6625,59.7346 32.1958,58.5347C 47.2625,58.268 60.0625,43.6013 58.0625,28.668C 56.9958,11.7346 37.9292,-0.398682 22.0625,5.46799 Z M 41.7958,17.6013C 43.3958,18.668 47.7958,19.868 45.7958,22.4013C 39.9292,29.7346 34.4625,37.6013 28.1958,44.5347C 23.7958,40.8013 20.3292,36.268 16.3292,32.1347C 13.9292,30.1347 17.6625,28.268 18.9958,26.9347C 22.4625,29.2013 24.7292,33.068 28.0625,35.7346C 32.4625,29.468 37.3958,23.7346 41.7958,17.6013 Z "/>
</Grid>

ClickOnce deployment

Warning:  There are currently issues with ClickOnce installers running on Windows 8 click here

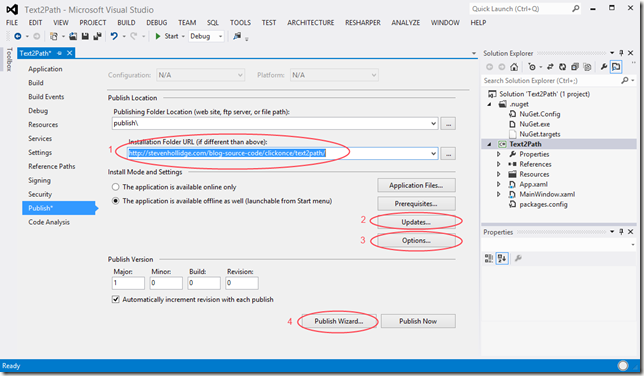

Within Visual Studio select your WPF Project > Properties > Publish tab

1.Set the installation folder


2. Click “Updates…” button and set your “Application Updates” settings then click OK:


3. Click the “Options…” button and set your application information:

a) For description enter all the appropriate information


b) Click on Deployment and enter a “Deployment web page” and select “Automatically generate….”


4. Now we are ready to “Publish”, so click the “Publish Wizard…” button:

a) For the first step we’ll export to our local folder then manually FTP to our web server.


b) The next step defaults to the installation folder you entered on the Project properties Publish tab


c) If your application runs offline you can accept the defaults:


d) We are now ready to Publish, click Finish:


Now upload the files from your Publish folder to your web server:


Friday 26 October 2012

Fiddler HTTPS

To setup Fiddler to show HTTPS request/responses you’ll need to export your client certificate from Internet Explorer into the Fiddler directory and activate HTTPS within Fiddler.

Here is how:

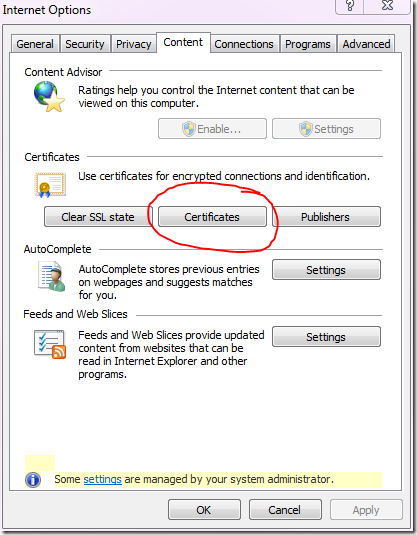

Internet Explorer > Tools > Options > Content tab > Click Certificates buttons:

2

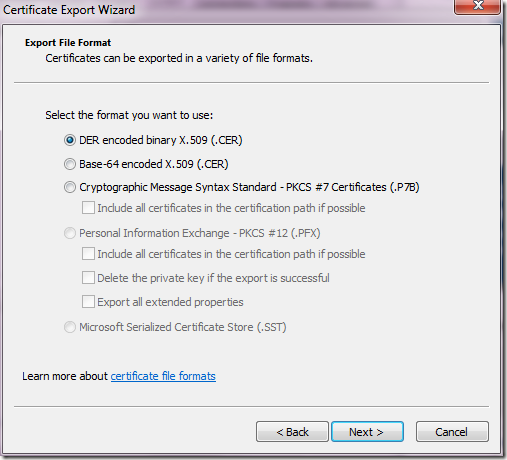

Click the Export button:

3

45

6



1

Sunday 7 October 2012

File streaming to Silverlight

Requirement

Expose an end point on a web server that accepts a id value and returns a file.

Solution

screenshot

fiddler


using System;
using System.IO;
using System.Web;

namespace FileStreaming.Web
{
public class DownloadFile : IHttpHandler
{
private const string FilesDirectory = @"\Files\";

public void ProcessRequest(HttpContext context)
{
if (context.Request.QueryString == null || context.Request.QueryString["reportid"] == null)
{
return;
}

var reportId = int.Parse(context.Request.QueryString["reportid"]);

var filename = ConvertReportIdToFileName(reportId);

var fullPath = Path.Combine(HttpContext.Current.Server.MapPath(FilesDirectory), filename);

var contentType = GetContentType(filename);

using (var reader = new StreamReader(fullPath))
{
var result = reader.ReadToEnd();
context.Response.ContentType = contentType;
context.Response.AddHeader("content-disposition", string.Format("attachment; filename={0}", filename));
context.Response.Write(result);
}
}

private string ConvertReportIdToFileName(int reportId)
{
switch (reportId)
{
case 1:
return @"report1.xlsx";
case 2:
return @"report2.docx";
case 3:
return @"report3.pdf";
default:
throw new ArgumentException("Unknown ReportId");
}
}

private string GetContentType(string file)
{
var fileExtension = file.Substring(file.Length - 4, 4).Replace(".", "");

switch (fileExtension)
{
case "xlsx":
return "application/vnd.openxmlformats-officedocument.spreadsheetml.sheet";

case "docx":
return "application/vnd.openxmlformats-officedocument.wordprocessingml.document";

case "pdf":
return "application/pdf";

case "json":
return "text/json";

case "xml":
return "text/xml";

default:
return "unknown";
}
}

public bool IsReusable
{
get
{
return false;
}
}
}
}

Source code


https://github.com/stevenh77/FileStreaming
